Jul 19 2005

Brat Box ][

Computer Specs

• Processor: Pentium 2.4c
• Motherboard: ABit IC7-Maxx 3
• Memory: 1-Gig Kingston HyperX PC3500
• Powersupply: Ultra-X Connect Shiny Bloo 500WT
• Soundcard: M-Audio AudioPhile 192
• Graphics Card: BFG 6800 GT AGP

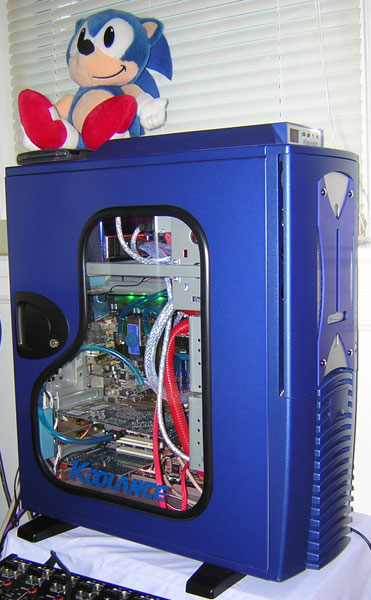

• Case: Koolance Blue PC2-650 Water Case
• Lighting: 2 12” UV’s, 2 12” Reds, 2 Red Fans

Peripherals

• Keyboard: 1984 IBM Model M 1390120
• Mouse: Razer Diamondback Red
• Mouse Surface: Xtrac Ripper

Storage

• Hard Drive : WD 250 Gig SATA
• DVD: Pioneer DVD-108 Burner
• External: Zip 250

Overclocking

• CPU: 3.5Ghz, 1105Mhz Bus
• Memory: 3-2-2-5 @ 5:4
• Graphics: 410Mhz Core/1.03 Mem

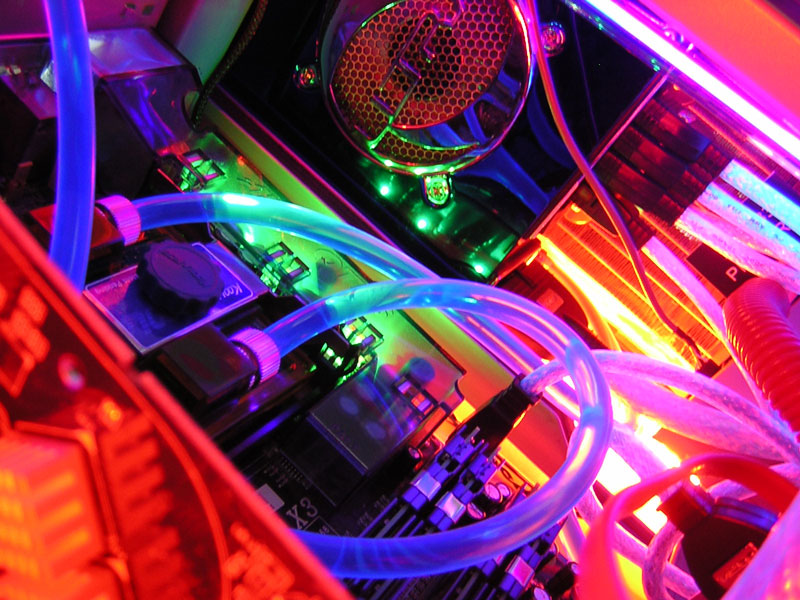

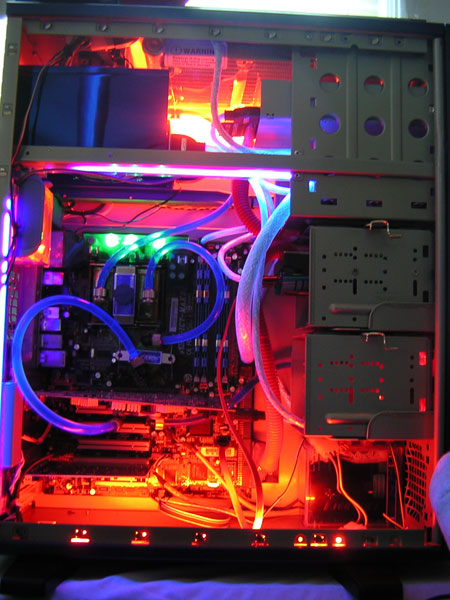

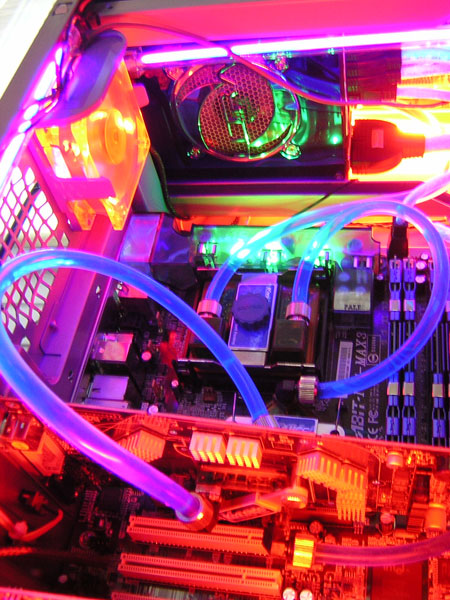

Cooling is of course watercooled using all Koolance waterbocks with the PC2-650 case. The CPU, GPU & Chipset are all cooled this way.

The Hard Drive has a bottom-mounted aluminum heat-sink with fans for cooling. 2 Additional PC case fans, one located on the front of the case, the other in the back, push air out to the back.

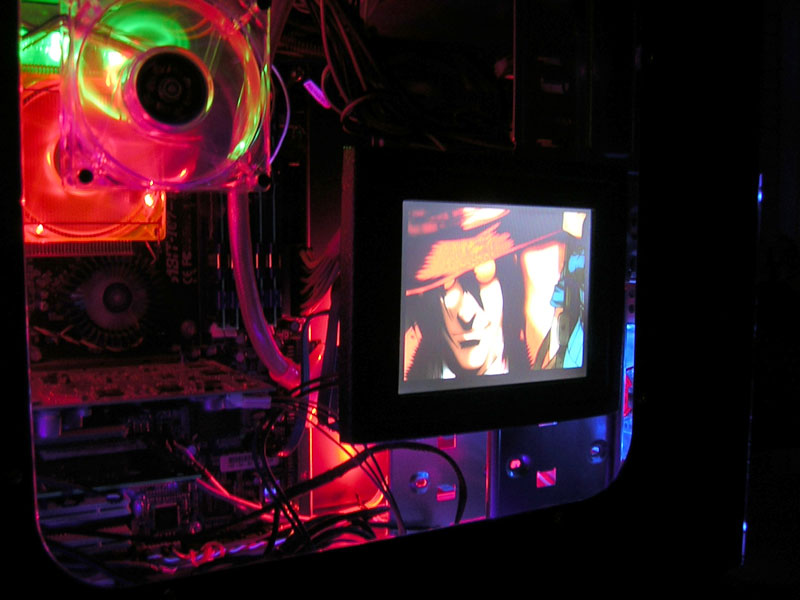

A later mod addition was a small LCD screen that I placed inside the case. It was powered right off the PSU using a standard 5-pin adapter with the video coming from the S-Video connection off the videocard.
